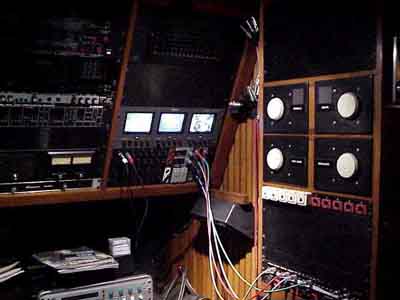

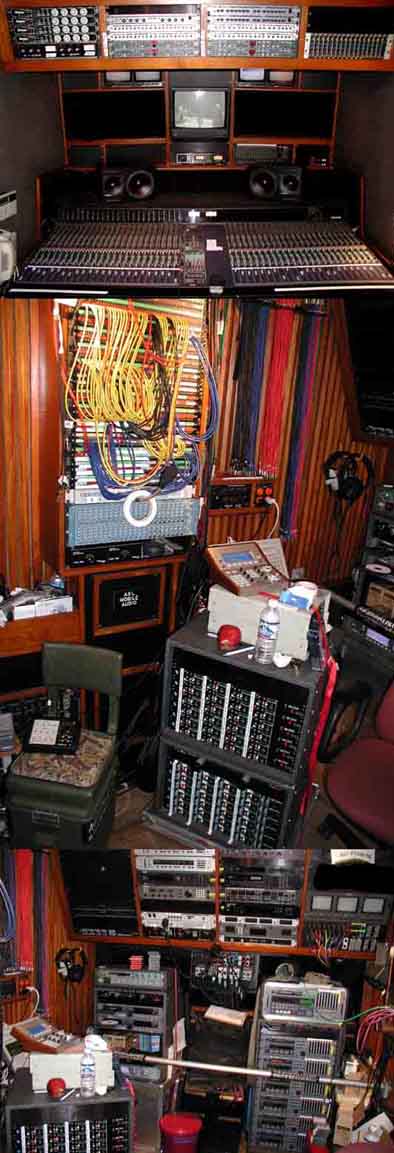

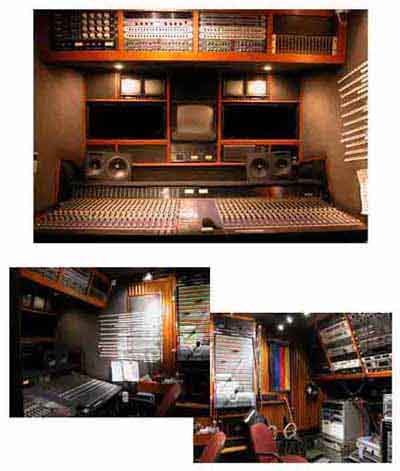

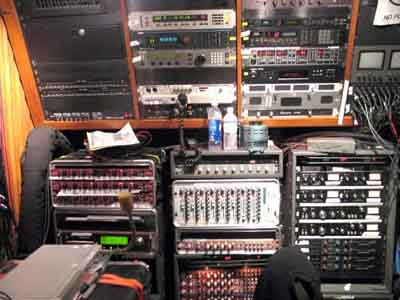

The ASL "Mobile Audio Control Cabin" has been ergonomically designed for maximum efficiency. Complete control and overview of the console, signal processing and video monitors is possible from the mix position. The main patch bay system is centrally located in the control cabin. Side audio/video panels can interface additional ASL or guest mic-pre's, mixers, processing, etc. The rear audio panel connects dual 48 or 24 track multitrack machine operation to the system. The front audio panel under the console interfaces the main console connections. Three separate air conditioners provide cooling to equipment and people individually.

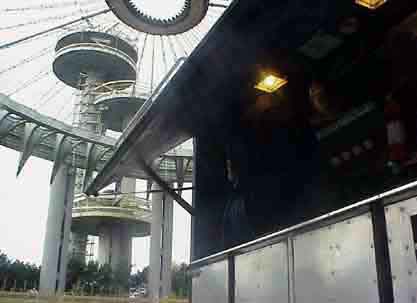

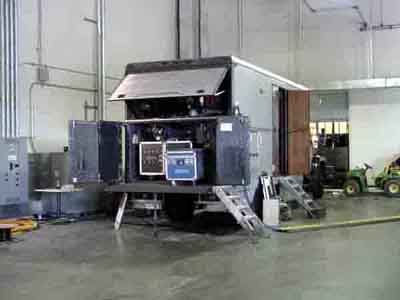

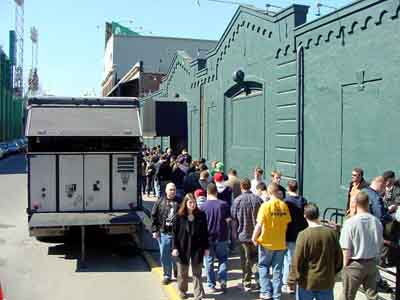

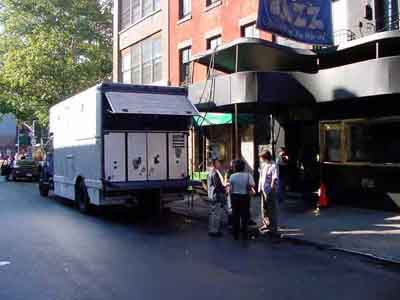

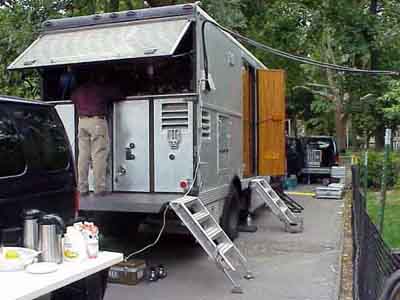

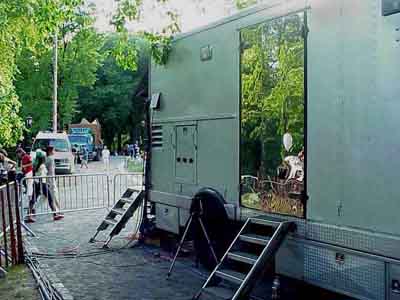

The outside rear "Audio/Video/Power Interface Area" is equipped with an awning for weatherproof crew operations during work or stand by. The lower bi-folding inventory doors provide easy access to stowed equipment in tight quarters. When the lift gate is not in use, it acts as the work platform for the A/V/P Interface Area. Five "Belly Bins" mounted beneath the control cabin provide storage for stands, snake/mults, feeder cable, truck supplies, etc.

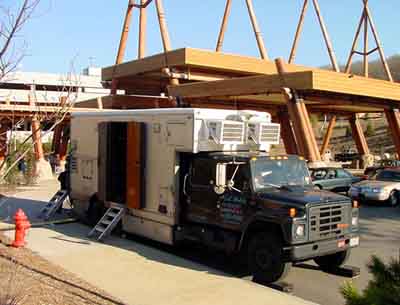

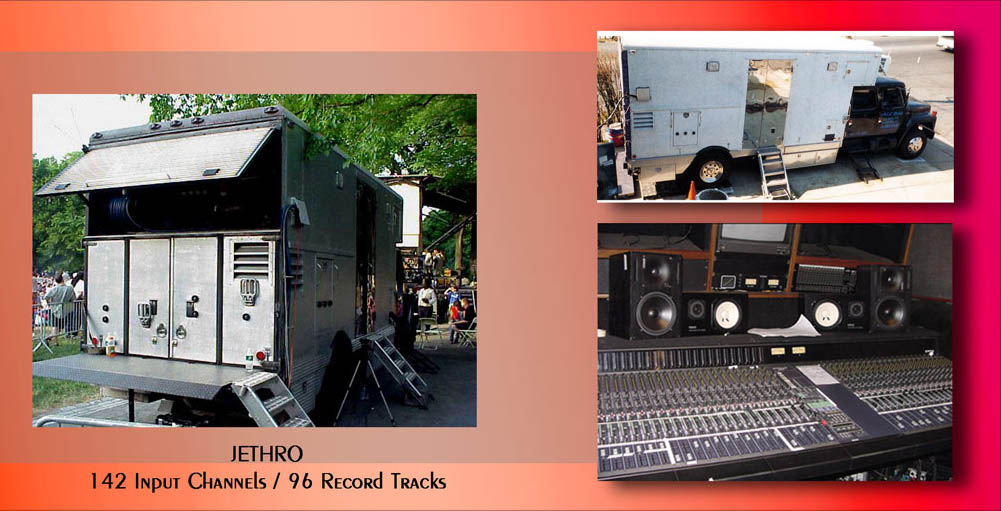

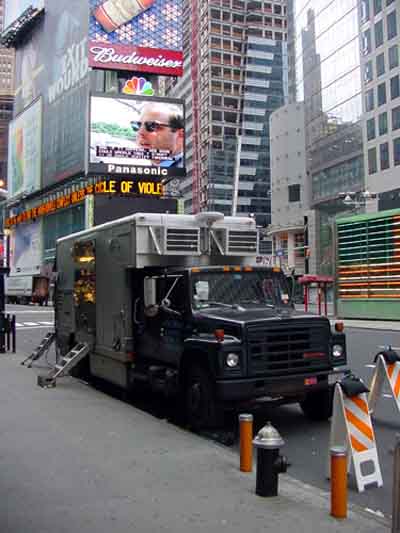

The "Control Cabin" rides on a Navistar International turbo charged Diesel truck with four door "Comfort Zone" travel crew cab and air ride suspension.
Jethro requires 50 amperes of Single Phase 208 Volts AC power.
A Camlok AC input panel is located in the rear A/V/P Interface Area.
Outside truck dimensions: 30' 6" long X 8' 0" wide X 11' 6" high.
Control cabin dimensions: 17' 0" long X 7' 5" wide X 7' 10" high.
The "Comfort Zone crew cab" provides an audio/video tie line interconnect box for interfaces to the main patch bay system. Color TV/monitors, stereo system, CB, PA and cellular phone surround the swiveling captain's chair. A switch panel controls outside scene and stair lighting.
172+ EXTERIOR MIC AND/OR LINE LEVEL TIE LINES SHOW UP ON THE TRUCK'S PATCH BAY.
200+ INTERIOR TIE LINES ARE AVAILABLE TO AUGMENT OUR STANDARD TRUCK PACKAGE.

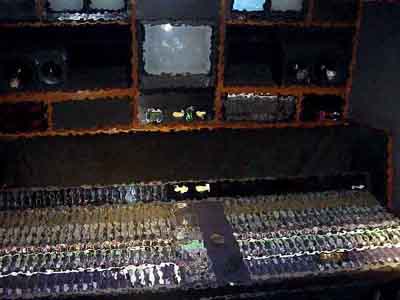

STANDARD CONSOLE IN THE CONTROL CABIN
OTARI:
(1) STATUS 18R 48 channel, 96 fader dual path modules w/ 96 channels of inserts & direct outs. Console-wide Image Recall of all input module pots & switches. Centralized Status Control System. Active Block Diagram for signal Flow adjusting.
STANDARD SUB MIXER IN THE CONTROL CABIN
SPECK:
(1) ASSIGN 28 44 ch. matrix mixer for API mic-pre's and/or guest pre's.
(28 inputs, 8 stereo returns, 8 bus outs & one 2 mix bus)

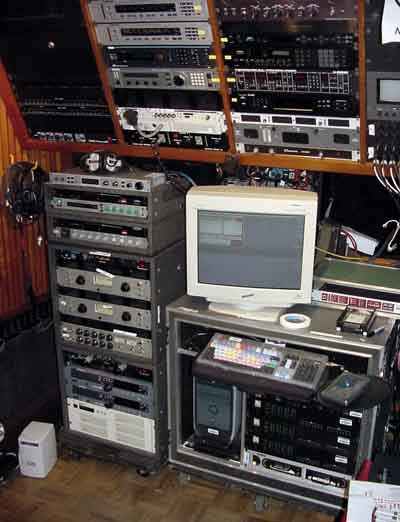

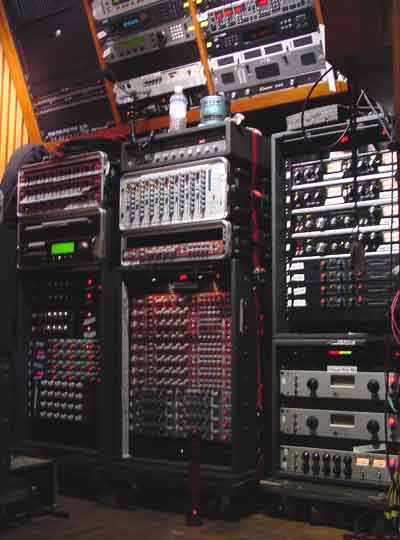

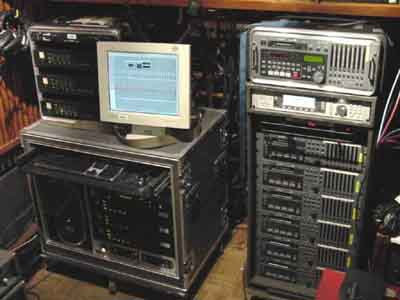

SIGNAL PROCESSING STANDARD IN THE CONTROL CABIN
APHEX:
(1) 320 COMPELLOR stereo compressor/leveler/limiter.
(2) 612 dual expander/gate/duckers.
BARCUS BERRY:
(1) 802 stereo audio processor.
BROOKE SIREN:
(2) DPR402 dual compressor/peak limiter/de-essers.
(2) DPR502 dual midi noise gates.
DBX:
(2) 160 compressor/limiters.
EMPIRICAL LABS:
(4) EL8 Distressor classic knee compressor.
EVENTIDE:
(1) H3000SE Ultra-Harmonizer effects processor w/ B + S VAI con kits
KLARK TEKNIK:
(2) DN500 dual compressor/limiter/expanders.
(2) DN510 advanced dual gates.
(2) DN780 digital reverb/processors.
LEXICON:
(1) 300 digital reverb processor.
REBIS AUDIO:
(16) RA201 noise gates.
(1) RA206 oscillator
TC ELECTRONICS:
(1) TC2290 digital delay w/ 11 second memory.
UREI:
(1) 565 filter set.
YAMAHA:
(1) REV7 digital reverb.
(1) SPX90II digital reverb.
MONITORS, AMPLIFIERS & METERING IN THE CONTROL CABIN
Other monitors and amplifiers are available from our portable equipment list or outside sources.
GENELEC:
(2) 1031A two way self-powered nearfield speakers.
MACKIE:
(2) HR824 two way self-powered nearfield speakers.
CLEARCOM:
(1) PARAGON audio monitor at second engineer's position in control cabin.
CROWN:
(1) D75 power amplifier at second engineer's position in truck control cabin.
US AUDIO:
(1) PHMAS1 master headphone module for headphone mix in the truck control cabin.
WOHLER / B & B:
(1) AM-2B stereo phase scope & headroom meter system.
(1) AMP-2A audio monitor system
INTERCOMMUNICATION ON BOARD THE MOBILE UNIT
RTS:
(3) MRT327 RTS user station w/ speaker and gooseneck microphone.
(1) SPK300L RTS portable speaker headset user station w/ push to talk microphone.
GODDARD DESIGN:
(2) CHAOS AUDIO custom biscuit boxes in truck control cabin &
(1) CHAOS AUDIO production speaker box at the truck's rear A/V interface area.
CCTV, VIDEO AND RADIO ON BOARD THE MOBILE UNIT
IKEGAMI:
(4) 930A black & white 9" monitors.
PANASONIC:
(1) BTD1910Y 19" color monitor.
(2) BTS901Y 9" color monitors.
(1) WVCL300 CCD color camera w/ remote zoom, pan & tilt for closed circuit video viewing.
SHINTRON
(1) CB100VA 2 channel, 10 output video distribution amplifier.
SONY:
(1) PVM5300 triple 5" color monitors.
TASCAM:
(1) TU690 Stereo tuner
TIMECODE, AUDIO DA's AND TELEPHONES IN THE CONTROL CABIN
(1) BRAINSTORM SR15 TIMECODE DISTRIPALYZER
timecode distribution amplifier, pilot tone stripper and analyzer.
(2) MIDIMAN SMPTE TIME WINDOW timecode reader/generators for "off tape" confidence of timecode at mix engineer's position.
(2) RADIO SYSTEMS DA16 8 stereo channel distribution amplifiers for 2 mix feeds.
(1) NOKIA cellular phone w/ permanent number nationwide coverage (second line in cab).
(1) four line landline telephone (other phones in A/V/P and cab areas).
AUDIO/ VIDEO PATCH BAYS AND PANELS IN THE MOBILE UNIT'S CONTROL CABIN
AUDIO ACCESSORIES Patch Bay w/
(1) 1704 point nickel platted bantam (TT) audio patch bay which interfaces all equipment aboard the mobile unit with the outside world via panels.
(1) ELCO/XLR audio panel for Dual 48 or 24 track machine operation and timecode interconnects.
(1) ELCO/XLR/BNC audio/video panel for an additional 30 transformer isolated send/returns to the outside world plus extra tie line interconnects.
(1) XLR/ ELCO/BNC audio/video panel for ancillary equipment and console/mic-pre interconnects.
(1) XLR/ELCO audio panel for interfacing to control room console
(24) point TROMPETER video patch bay connects all outside feeds to video DA's monitors and VTR's, etc.
AUDIO/VIDEO/POWER INTERFACE PANELS AND ACCESSORIES AT REAR OF MOBILE UNIT
(142) audio mic/lines (via 2 - 52 ch. MASS and 2 - 19 ch. LK connectors) individual XLR connections for 80 of the above 142 mic/lines are possible.
(4) individual XLR private listen comm lines for CHAOS, RTS, CLEARCOM and one aux comm system.
(all PL lines show up in various positions aboard the mobile unit)
(8) BNC video send or returns (all 8 have hum bucker coils) show up on video patch bay).
(5) XLR or BANANA telco lines (three landline phones are on the mobile unit).
(2) isolated stereo XLR output feeds from Radio Systems distribution amplifier.
(1) isolated stereo XLR or BANANA output feeds from second Radio System distribution amplifier.
(1) isolated stereo XLR or BANANA studio output feed from console's studio section.
(1) isolated stereo XLR or BANANA auxiliary feed from console's foldback section.
(2) cab mic outputs for possible voice over situations.
(4) chassis mounted male to male XLR turnarounds.
(30) XLR audio input and/or output tie lines (12) w/ 600-ohm transformer isolation.
(1) XLR timecode input to DISTRIPALYZER distribution.
(1) two line landline telephone (additional phones are in the A/V/P and control cabin areas).
(1) Camlok AC Power input panel - single-phase 208 volts 100 amps.
(1) 200-amp AC company disconnect two way switch for shore and backup power sources.
(1) Dual 30 amp 120-volt Ancillary power source panel via Hubbell twistlock connections from the secondary side of the Aux power's Ultra Isolation transformer.
(2) 12KVA Topaz Ultra Isolation transformers w/ one Stableline voltage regulator for Aux power & one UPS for Tech power.
Digital meters providing voltage and amperage readings for the primary and secondary sides of both Ultra Isolation transformers.
COMFORT ZONE CREW CAB EQUIPMENT AND ACCESSORIES
(1) PANASONIC CT300VT 3" color monitor/TV tuner.
(1) REALISTIC 13" color TV tuner and VHS VCR.
(1) MARANTZ 40 channel CB, PA and stereo cassette/radio system.
(1) NOKIA cellular phone w/ permanent number nationwide coverage (other phone in cabin).
(1) two line landline telephone (additional phones are in the A/V/P and control cabin areas).
(1) XLR/BNC audio/video tie line box for main patch bay system interfacing.
(1) switch panel for outside scene and stair lighting, lift gate, stereo system, etc.
